1.SSM框架

SSM(Spring+SpringMVC+MyBatis)框架集由Spring、SpringMVC、MyBatis三個開源框架整合而成，常作為數據源較簡單的web項目的框架。

2.簡單實例

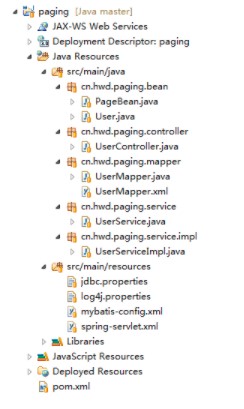

(1)項目結構

(2)PageBean.java

package cn.hwd.paging.bean;
import java.util.List;
public class PageBean<T> {
	private int pc;// 當前頁碼page code
//	private int tp;// 總頁數total page
	private int tr;// 總記錄數total record
	private int ps;// 每頁記錄數page size
	private List<T> list;// 當前頁的記錄
	public int getPc() {
		return pc;
	}
	public void setPc(int pc) {
		this.pc = pc;
	}
	/**
	 * 計算總頁數
	 * @return
	 */
	public int getTp() {
		// 通過總記錄數和每頁記錄數來計算總頁數
		int tp = tr / ps;
		return tr%ps==0 ? tp : tp+1;
	}
//	public void setTp(int tp) {
//		this.tp = tp;
//	}
	public int getTr() {
		return tr;
	}
	public void setTr(int tr) {
		this.tr = tr;
	}
	public int getPs() {
		return ps;
	}
	public void setPs(int ps) {
		this.ps = ps;
	}
	public List<T> getList() {
		return list;
	}
	public void setList(List<T> list) {
		this.list = list;
	}
}

(3)User.java

package cn.hwd.paging.bean;
import java.util.Date;
public class User {
	private Integer id;
    private String name;
    private Integer age;
    private Date birth;
	public Integer getId() {
		return id;
	}
	public void setId(Integer id) {
		this.id = id;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public Integer getAge() {
		return age;
	}
	public void setAge(Integer age) {
		this.age = age;
	}
	public Date getBirth() {
		return birth;
	}
	public void setBirth(Date birth) {
		this.birth = birth;
	}
	public User() {
		super();
		// TODO Auto-generated constructor stub
	}
	public User(Integer id, String name, Integer age, Date birth) {
		super();
		this.id = id;
		this.name = name;
		this.age = age;
		this.birth = birth;
	}
}

(4)UserController.java

package cn.hwd.paging.controller;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import cn.hwd.paging.bean.PageBean;
import cn.hwd.paging.bean.User;
import cn.hwd.paging.service.UserService;
@Controller
@RequestMapping("/user")
public class UserController {
	@Autowired
	private UserService userService;
	@RequestMapping("/index.action")
    public String index(
    		@RequestParam(value="pc", required=true, defaultValue="1") Integer pc,
    		Model model) throws Exception {
		PageBean<User> pb = new PageBean<User>();
		pb.setPc(pc);
		int ps = 10;
		pb.setPs(ps);
		int tr = userService.count();
		pb.setTr(tr);
		Map<String, Object> map = new HashMap<String, Object>();
		map.put("m", (pc - 1) * ps);
		map.put("n", ps);
		List<User> users = userService.findAll(map);
		pb.setList(users);
		model.addAttribute("pb", pb);
        return "index";
    }
}

(5)UserMapper.java

package cn.hwd.paging.mapper;
import java.util.List;
import java.util.Map;
import cn.hwd.paging.bean.User;
public interface UserMapper {
	public Integer count() throws Exception;
	public List<User> findAll(Map<String, Object> map) throws Exception;
}

(6)UserMapper.xml

<?xml version="1.0" encoding="utf-8" ?>
<!DOCTYPE mapper
	PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
	"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="cn.hwd.paging.mapper.UserMapper">
	<resultMap id="userResultMap" type="user">
	    <id column="id" property="id"/>
	    <result column="name" property="name"/>
	    <result column="age" property="age"/>
	    <result column="birth" property="birth"/>
    </resultMap>
	<select id="count" resultType="int">
    	select count(*) from user
  	</select>
	<select id="findAll" parameterType="map" resultMap="userResultMap">
    	select id,name,age,birth from user limit #{m}, #{n}
  	</select>
</mapper>

(7)UserService.java

package cn.hwd.paging.service;
import java.util.List;
import java.util.Map;
import cn.hwd.paging.bean.User;
public interface UserService {
	public Integer count() throws Exception;
	public List<User> findAll(Map<String, Object> map) throws Exception;
}

(8)UserServiceImpl.java

package cn.hwd.paging.service.impl;
import java.util.List;
import java.util.Map;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import cn.hwd.paging.bean.User;
import cn.hwd.paging.mapper.UserMapper;
import cn.hwd.paging.service.UserService
@Service("userService")
public class UserServiceImpl implements UserService {
	@Autowired
    private UserMapper userMapper;
	public Integer count() throws Exception {
		return userMapper.count();
	}
	@Override
	public List<User> findAll(Map<String, Object> map) throws Exception {
        return userMapper.findAll(map);
	}
}

(9)jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/hwd
jdbc.username=root
jdbc.password=mysql

(10)log4j.properties

# 定義log輸出級別
log4j.rootLogger=DEBUG, Console
# 定義log輸出為控制臺
log4j.appender.Console=org.apache.log4j.ConsoleAppender
# 指定輸出格式，其中%p表示日志級別 ，%t表示當前線程名，%m表示日志內容，%n表示換行
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%5p [%t] - %m%n

(11)mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<typeAliases>
		<package name="cn.hwd.paging.bean" />
	</typeAliases>
</configuration>

(12)spring-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.3.xsd">
    <context:component-scan base-package="cn.hwd.paging" />
	<!-- 配置視圖解析器 -->
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<!-- 配置jsp路徑的前綴 -->
		<property name="prefix" value="/WEB-INF/page/" />
		<!-- 配置jsp路徑的后綴 -->
		<property name="suffix" value=".jsp" />
	</bean>
	<context:property-placeholder location="classpath:jdbc.properties" />
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
    	destroy-method="close">
        <property name="driverClassName" value="${jdbc.driver}" />
        <property name="url" value="${jdbc.url}" />
        <property name="username" value="${jdbc.username}" />
        <property name="password" value="${jdbc.password}" />
    </bean>
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- mybatis配置文件 -->
        <property name="configLocation" value="classpath:mybatis-config.xml" />
        <!-- 數據源 -->
        <property name="dataSource" ref="dataSource" />
    </bean>
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
    	<property name="basePackage" value="cn.hwd.paging.mapper" />
    	<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
    </bean>
</beans>

(13)pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>cn.hwd</groupId>
  <artifactId>paging</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>paging Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.8.1</version>
    </dependency>
    <dependency>
	  <groupId>javax.servlet</groupId>
	  <artifactId>servlet-api</artifactId>
	  <version>2.5</version>
	</dependency>
	<dependency>
  	  <groupId>org.mybatis</groupId>
  	  <artifactId>mybatis</artifactId>
  	  <version>3.2.6</version>
  	</dependency>
  	<dependency>
	  <groupId>mysql</groupId>
	  <artifactId>mysql-connector-java</artifactId>
	  <version>5.1.30</version>
	</dependency>
  	<dependency>
  	  <groupId>log4j</groupId>
  	  <artifactId>log4j</artifactId>
  	  <version>1.2.16</version>
  	</dependency>
  	<dependency>
	  <groupId>org.springframework</groupId>
	  <artifactId>spring-webmvc</artifactId>
	  <version>4.0.2.RELEASE</version>
	</dependency>
	<dependency>
  	  <groupId>org.mybatis</groupId>
  	  <artifactId>mybatis-spring</artifactId>
  	  <version>1.2.2</version>
  	</dependency>
  	<dependency>
  	  <groupId>commons-dbcp</groupId>
  	  <artifactId>commons-dbcp</artifactId>
  	  <version>1.2.2</version>
  	</dependency>
  	<dependency>
  	  <groupId>org.springframework</groupId>
  	  <artifactId>spring-jdbc</artifactId>
  	  <version>4.0.2.RELEASE</version>
  	</dependency>
  	<dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <dependency>
      <groupId>taglibs</groupId>
      <artifactId>standard</artifactId>
      <version>1.1.2</version>
    </dependency>
  </dependencies>
  <build>
    <finalName>paging</finalName>
  </build>

(14)index.jsp

<%@ page language="java" contentType="text/html; charset=utf-8"
    pageEncoding="utf-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>paging</title>
</head>
<body>
	<table>
		<thead>
			<tr>
				<th>id</th>
				<th>name</th>
				<th>age</th>
				<th>birth</th>
			</tr>
		</thead>
		<tfoot>
			<tr>
				<td colspan="4">
					第${pb.pc }頁/共${pb.tp }頁
					<a href="<c:url value="/user/index.action" />?pc=1">首頁</a>
					<c:if test="${pb.pc > 1 }">
						<a href="<c:url value="/user/index.action" />?pc=${pb.pc - 1 }">上一頁</a>
					</c:if>
					<%-- 計算begin、end --%>
					<c:choose>
						<%-- 如果總頁數不足10頁，那么把所有的頁數都顯示出來！ --%>
						<c:when test="${pb.tp <= 10 }">
							<c:set var="begin" value="1" />
							<c:set var="end" value="${pb.tp }" />
						</c:when>
						<c:otherwise>
							<%-- 當總頁數>10時，通過公式計算出begin和end --%>
							<c:set var="begin" value="${pb.pc-5 }" />
							<c:set var="end" value="${pb.pc+4 }" />
							<%-- 頭溢出 --%>
							<c:if test="${begin < 1 }">
								<c:set var="begin" value="1" />
								<c:set var="end" value="10" />
							</c:if>
							<%-- 尾溢出 --%>
							<c:if test="${end > pb.tp }">
								<c:set var="begin" value="${pb.tp - 9 }" />
								<c:set var="end" value="${pb.tp }" />
							</c:if>
						</c:otherwise>
					</c:choose>
					<%-- 循環遍歷頁碼列表 --%>
					<c:forEach var="i" begin="${begin }" end="${end }">
						<c:choose>
							<c:when test="${i eq pb.pc }">
								[${i }]
							</c:when>
							<c:otherwise>
								<a href="<c:url value="/user/index.action" />?pc=${i}">[${i }]</a>
							</c:otherwise>
						</c:choose>
					</c:forEach>
					<c:if test="${pb.pc < pb.tp }">
						<a href="<c:url value="/user/index.action" />?pc=${pb.pc + 1 }">下一頁</a>
					</c:if>
					<a href="<c:url value="/user/index.action" />?pc=${pb.tp }">尾頁</a>
				</td>
			</tr>
		</tfoot>
		<tbody>
			<c:forEach items="${pb.list }" var="user">
				<tr>
					<td>${user.id }</td>
					<td>${user.name }</td>
					<td>${user.age }</td>
					<td><fmt:formatDate value="${user.birth }" pattern="yyyy/MM/dd HH:mm:ss" /></td>
				</tr>
			</c:forEach>
		</tbody>
	</table>
</body>
</html>

(15)web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">
  <display-name>Archetype Created Web Application</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>
  <!-- 配置前端控制器 -->
  <servlet>
    <servlet-name>spring</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring-servlet.xml</param-value>
    </init-param>
  </servlet>
  <servlet-mapping>
    <servlet-name>spring</servlet-name>
    <url-pattern>*.action</url-pattern>
  </servlet-mapping>
</web-app>

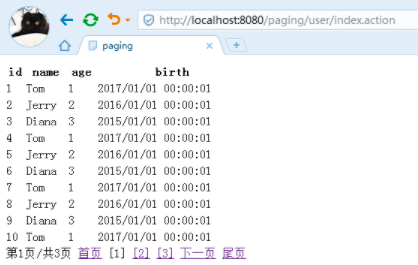

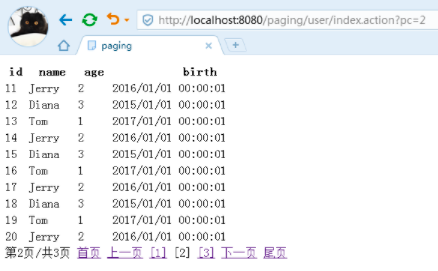

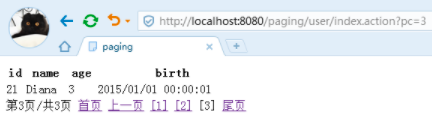

(16)運行結果

以上就是關于“SSM框架實例”的介紹，大家如果對此比較感興趣，可以關注一下動力節點的SSM視頻教程，里面的課程內容全面細致，由淺到深，通俗易懂，適合沒有基礎的小白學習，希望對大家能夠有所幫助。
