SpringBoot集成Dubbo

阿里巴巴提供了dubbo集成springBoot開源項目，可以到GitHub上https://github.com/alibaba/dubbo-spring-boot-starter查看入門教程。

基本集成步驟

1.開發Dubbo服務接口

按照Dubbo官方開發建議，創建一個接口項目，該項目只定義接口和model類。

項目名稱：019-springboot-dubbo-exterface

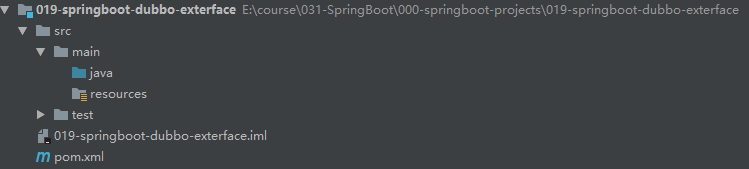

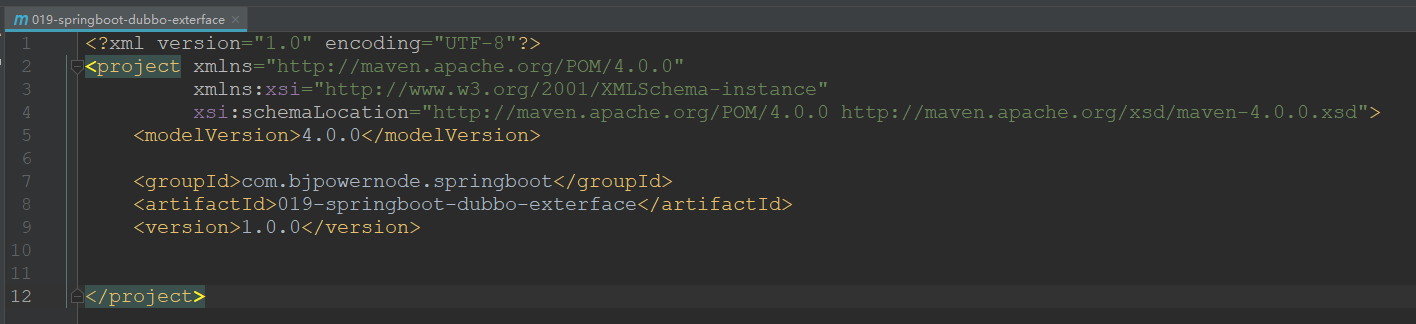

① 創建普通Maven項目，dubbo服務接口工程

② 創建UserService接口

public interface UserService {
    String say(String name);
}

2.開發Dubbo服務提供者

項目名稱：021-springboot-dubbo-provider

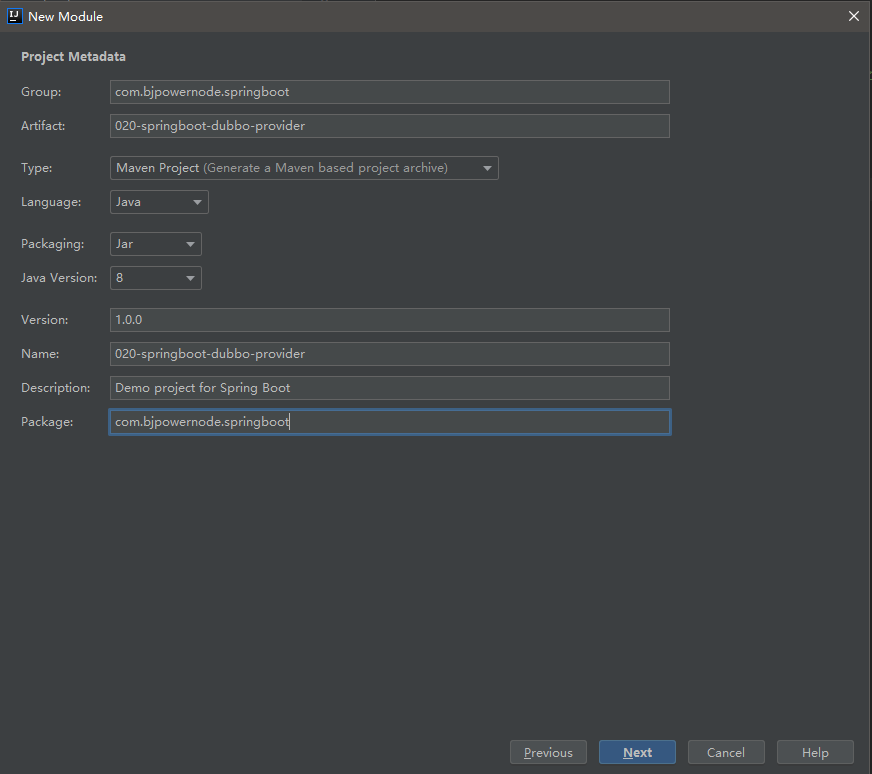

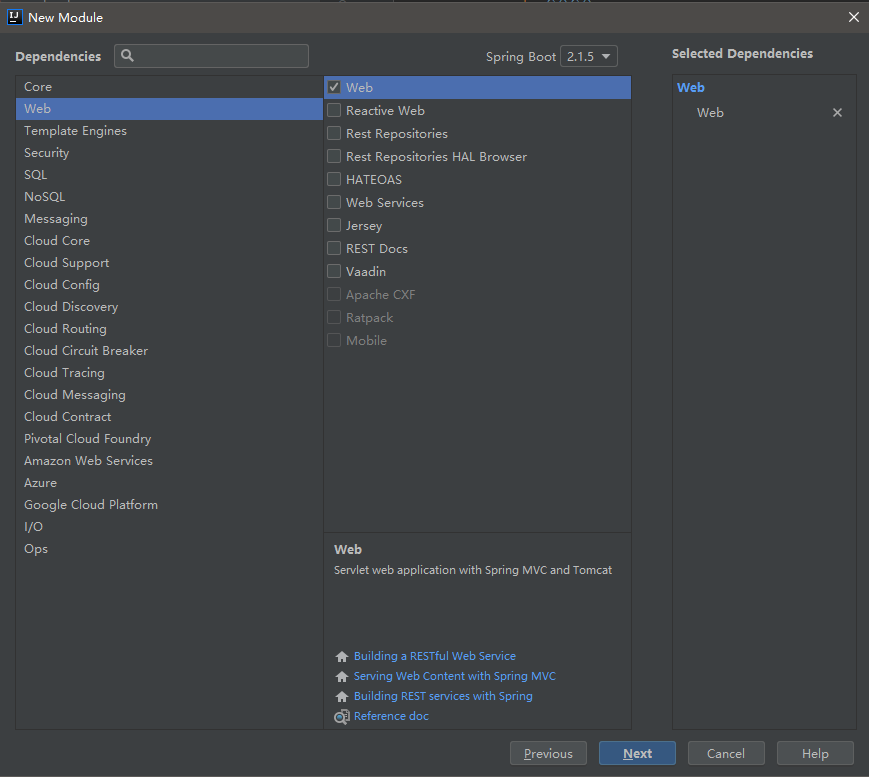

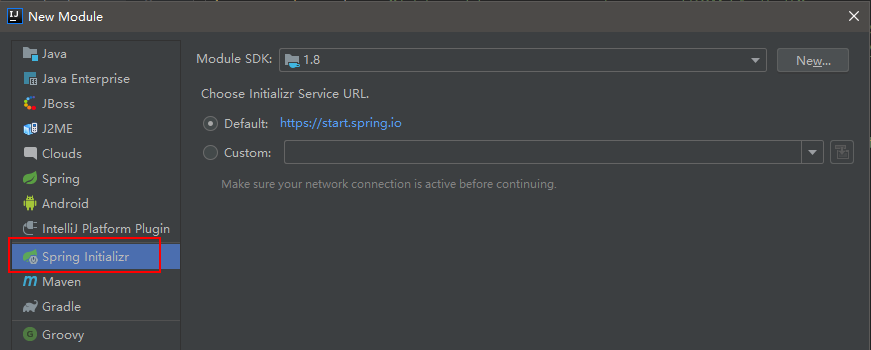

① 創建SpringBoot WEB項目

② 加入springboot與dubbo集成的起步依賴

<!--Spring Boot集成Dubbo的起步依賴-->
<dependency>
   <groupId>com.alibaba.spring.boot</groupId>
   <artifactId>dubbo-spring-boot-starter</artifactId>
   <version>2.0.0</version>
</dependency>

③ 由于使用zookeeper作為注冊中心，需加入zookeeper的客戶端依賴

<!--ZooKeeper注冊中心依賴-->
<dependency>
   <groupId>com.101tec</groupId>
   <artifactId>zkclient</artifactId>
   <version>0.10</version>
</dependency>

④ 加入019-springboot-dubbo-exterface接口依賴

<!--Dubbo接口工程依賴-->
<dependency>
    <groupId>com.bjpowernode.springboot</groupId>
    <artifactId>019-springboot-dubbo-exterface</artifactId>
    <version>1.0.0</version>
</dependency>

⑤ 在Springboot的核心配置文件application.properties中配置dubbo的信息

#配置內嵌Tomcat端口號
server.port=9090

#配置項目上下文根
server.servlet.context-path=/020-springboot-dubbo-provider

#配置Dubbo服務提供者配置
#服務提供者應用名稱必須寫，且不能重復
spring.application.name=020-springboot-dubbo-provider
#表示是服務提供者，可以省略
spring.dubbo.server=true
#注冊中心地址
spring.dubbo.registry=zookeeper://192.168.92.134:2181

注意：Dubbo的注解都是自定義的注解，由我們添加的Dubbo依賴中的類進行處理編寫dubbo配置是沒有提示的

⑥ 編寫Dubbo的接口實現類

import com.alibaba.dubbo.config.annotation.Service;
import org.springframework.stereotype.Component;

//@Service是由阿里提供的注解，不是spring的注冊
//@Service相當于
//如果提供者指定version,那么消費者也得指定version
@Service(interfaceClass = UserService.class,version = "1.0.0",timeout = 15000)
@Component  //將接口實現類交給spring容器進行管理
public class UserServiceImpl implements UserService {

    @Override
    public String say(String name) {
        return "Hello SpringBoot!";
    }
}

⑦ 在SpringBoot入口程序類上加開啟Dubbo配置支持注解

@SpringBootApplication
@EnableDubboConfiguration//開啟Dubbo配置支持
public class Application {
   public static void main(String[] args) {
      SpringApplication.run(Application.class, args);
   }
}

⑧ 啟動Zookeeper服務

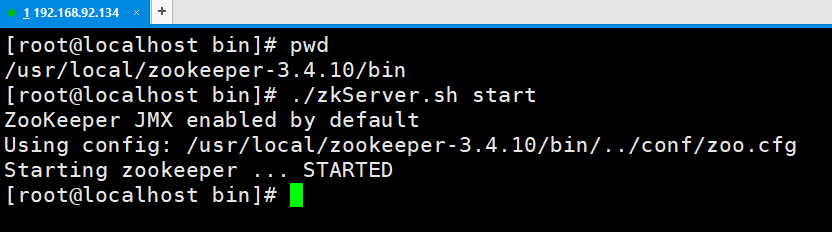

• 啟動Linux服務器上的Zookeeper

• 啟動服務提供者項目主程序

3.開發Dubbo服務消費者

項目名稱：021-springboot-dubbo-consumer

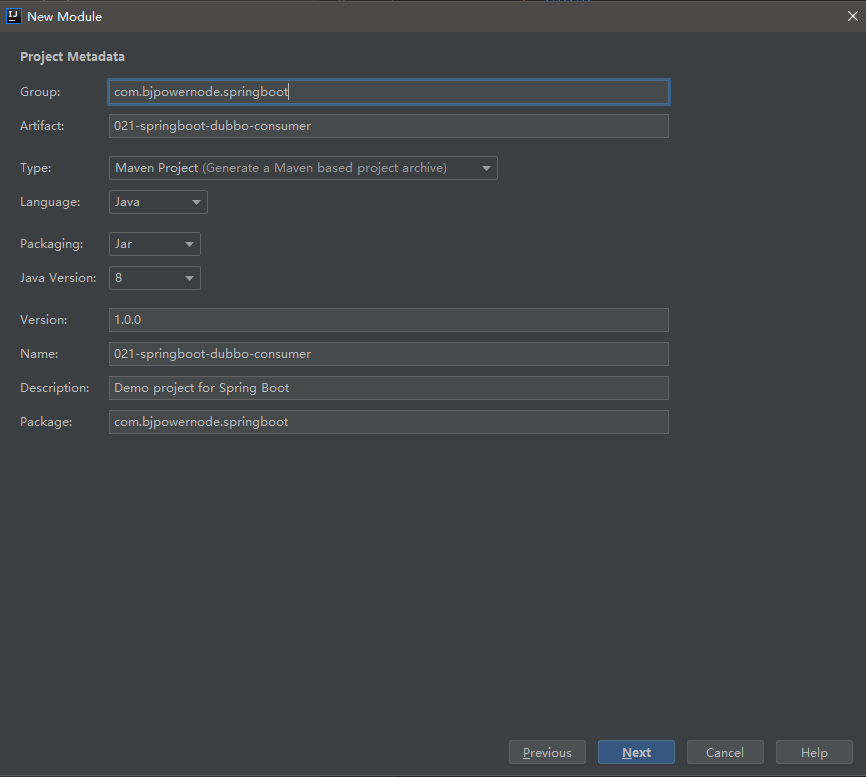

① 創建SpringBoot WEB項目

② 加入springboot與dubbo集成的起步依賴

<!--Spring Boot集成Dubbo的起步依賴-->
<dependency>
   <groupId>com.alibaba.spring.boot</groupId>
   <artifactId>dubbo-spring-boot-starter</artifactId>
   <version>2.0.0</version>
</dependency>

③ 由于使用zookeeper作為注冊中心，需加入zookeeper的客戶端依賴

<!--ZooKeeper注冊中心依賴-->
<dependency>
    <groupId>com.101tec</groupId>
    <artifactId>zkclient</artifactId>
    <version>0.10</version>
</dependency>

④ 加入019-springboot-dubbo-exterface接口依賴

<!--Dubbo接口工程依賴-->
<dependency>
    <groupId>com.bjpowernode.springboot</groupId>
    <artifactId>019-springboot-dubbo-exterface</artifactId>
    <version>1.0.0</version>
</dependency>

⑤ 在Springboot的核心配置文件application.properties中配置dubbo的信息

#配置內嵌Tomcat端口號
server.port=8080

#配置項目上下文根
server.servlet.context-path=/021-springboot-dubbo-consumer

#配置dubbo服務提供者配置
spring.application.name=021-springboot-dubbo-consumer
#配置注冊中心地址
spring.dubbo.registry=zookeeper://192.168.92.134:2181

⑥  編寫一個Controller類，調用遠程的Dubbo服務

import com.alibaba.dubbo.config.annotation.Reference;
import com.bjpowernode.springboot.service.UserService;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletRequest;

@RestController
public class UserController {

    //@Reference注冊是由阿里所提供
    //@Reference注解 相當于
    //如果服務提供者
    @Reference(version = "1.0.0")
    private UserService userService;

    @RequestMapping(value = "/springBoot/hello")
    public Object hello(HttpServletRequest request) {

        String sayHello = userService.say("SpringBoot");

        return sayHello;
    }
}

⑦ 在SpringBoot入口程序類上加開啟Dubbo配置支持注解

@SpringBootApplication
@EnableDubboConfiguration //開啟Dubbo配置支持
public class Application {

    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

⑧ 測試

• 啟動服務消費者項目主程序

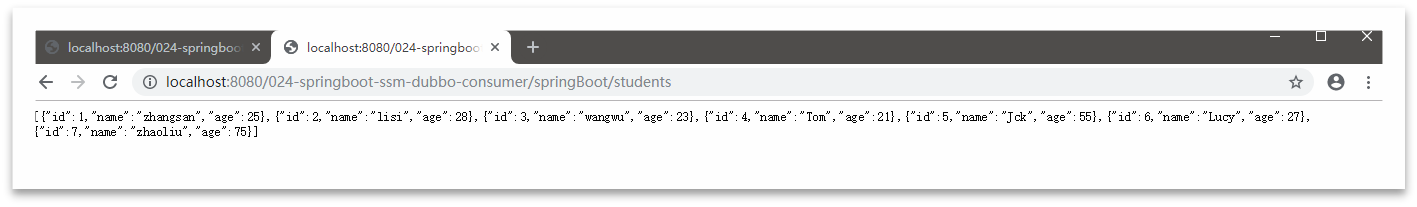

• 瀏覽器訪問測試

SpringBoot + Dubbo + Mybatis+Redis集成

該實例目的是為了讓同學們快速學會使用SpringBoot集成搭建SpringMVC、Spring、MyBatis及Redis

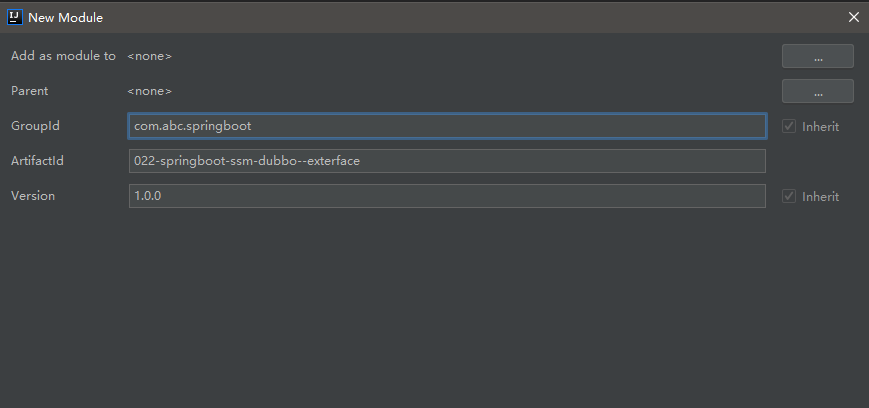

1.創建Maven Java工程，Dubbo接口工程

項目名稱：022-springboot-ssm-dubbo-exterface

2.創建StudentService業務接口類

package com.abc.springboot.service;

import com.abc.springboot.model.Student;
import java.util.List;

/**
 * ClassName:StudentService
 * Package:com.abc.springboot.service
 * Description:

 */
public interface StudentService {

    /**
     * 查詢所有學生
     * @return
     */
    List queryAllStudent();

    /**
     * 獲取學生總?cè)藬?shù)
     * @return
     */
    Long queryAllStudentCount();
}

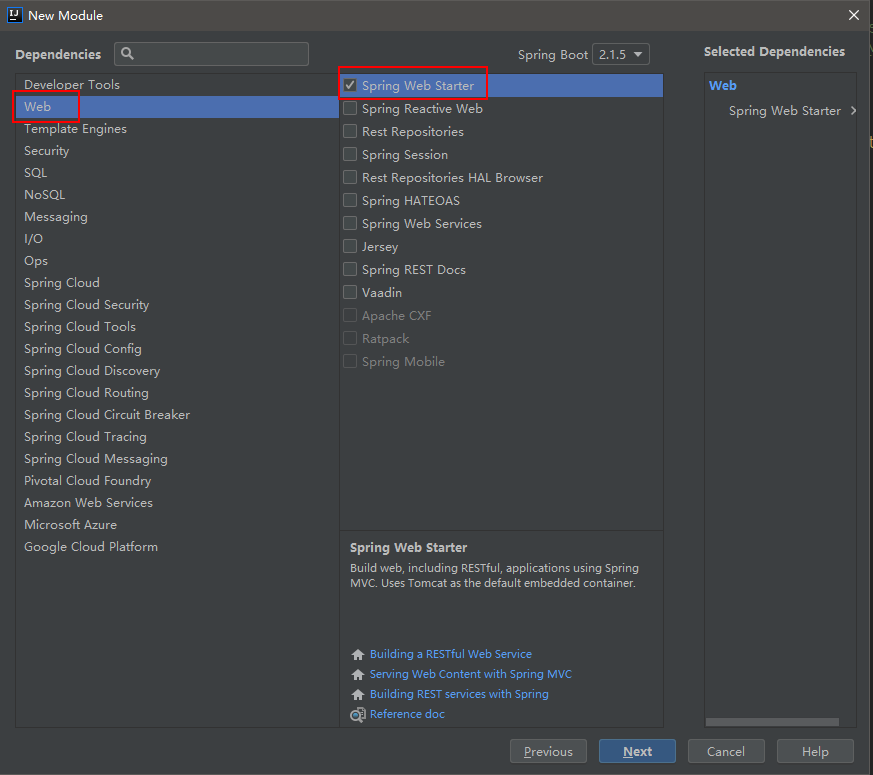

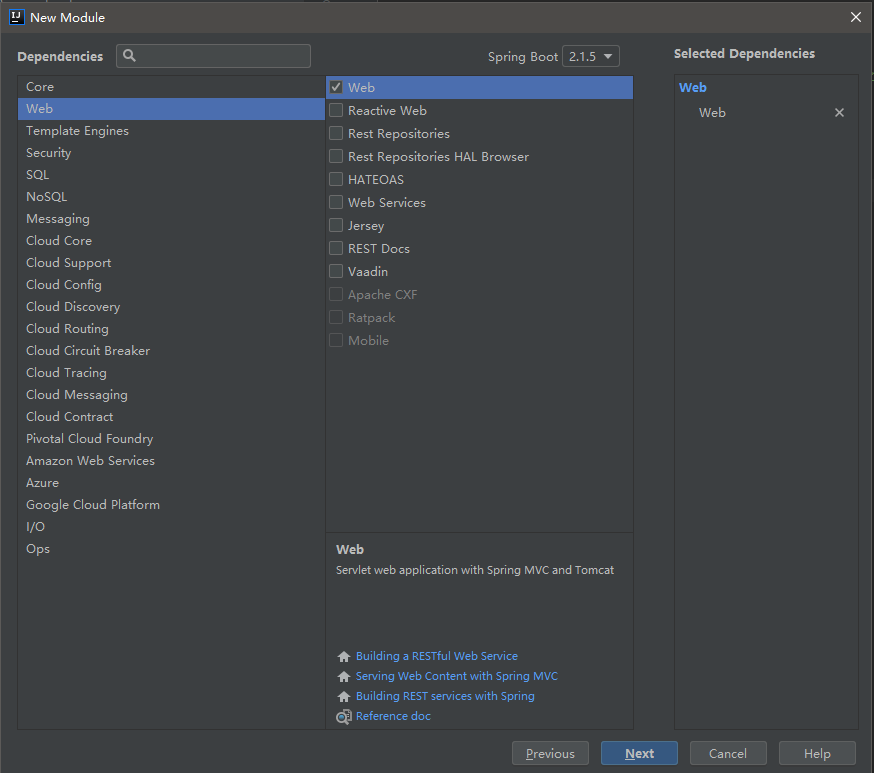

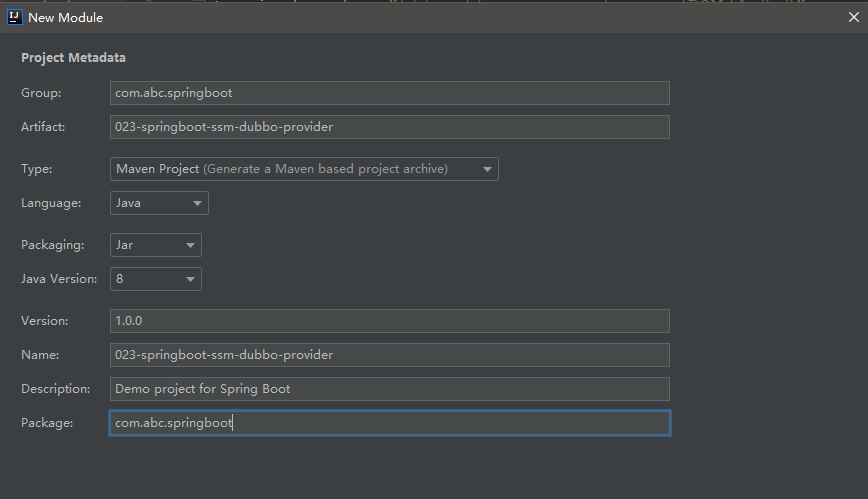

3.創建Dubbo服務提供者

項目名稱：023-springboot-ssm-dubbo-provider

4.給Dubbo服務提供者添加依賴

<!--SpringBoot集成Dubbo起步依賴-->
<dependency>
    <groupId>com.alibaba.spring.boot</groupId>
    <artifactId>dubbo-spring-boot-starter</artifactId>
    <version>2.0.0</version>
</dependency>

<!--zookeeper注冊中心-->
<dependency>
    <groupId>com.101tec</groupId>
    <artifactId>zkclient</artifactId>
    <version>0.10</version>
</dependency>

<!--MyBatis集成SpringBoot框架起步依賴-->
<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>2.0.0</version>
</dependency>

<!--連接MySQL數據庫驅動-->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
</dependency>

<!--SpringBoot集成Redis起步依賴-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>

<!—dubbo接口工程 -->
<dependency>
	<groupId>com.abc.springboot</groupId>
<artifactId>022-springboot-ssm-dubbo-exterface</artifactId>
<version>1.0.0</version>
</dependency>

5.手動指定資源配置文件路徑在pom文件中的build標簽中添加

<!--手動指定資源配置文件路徑-->
<!--目的：將數據持久層映射文件編譯到classpath中-->
<resources>
    <resource>
        <directory>src/main/java</directory>
        <includes>
            <include>**/*.xml</include>
        </includes>
    </resource>
</resources>

6.配置MyBatis逆向工程

① 添加插件

<!--mybatis代碼自動生成插件-->
<plugin>
    <groupId>org.mybatis.generator</groupId>
    <artifactId>mybatis-generator-maven-plugin</artifactId>
    <version>1.3.7</version>
    <configuration>
        <!--配置文件的位置-->
        <configurationFile>GeneratorMapper.xml</configurationFile>
        <verbose>true</verbose>
        <overwrite>true</overwrite>
    </configuration>
</plugin>

② 將配置文件存放到項目根據目錄

③ GeneratorMapper.xml內容如下

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>

    <!-- 指定連接數據庫的JDBC驅動包所在位置，指定到你本機的完整路徑 -->
    <classPathEntry location="E:\mysql-connector-java-5.1.38.jar"/>

    <!-- 配置table表信息內容體，targetRuntime指定采用MyBatis3的版本 -->
    <context id="tables" targetRuntime="MyBatis3">

        <!-- 抑制生成注釋，由于生成的注釋都是英文的，可以不讓它生成 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true" />
        </commentGenerator>

        <!-- 配置數據庫連接信息 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://192.168.92.134:3306/springboot"
                        userId="root"
                        password="123456">
        </jdbcConnection>

        <!-- 生成model類，targetPackage指定model類的包名， targetProject指定生成的model放在eclipse的哪個工程下面-->
        <javaModelGenerator targetPackage="com.abc.springboot.model"
                            targetProject="E:\course\031-SpringBoot\000-springboot-projects\022-springboot-ssm-dubbo-exterface\src\main\java">
            <property name="enableSubPackages" value="false" />
            <property name="trimStrings" value="false" />
        </javaModelGenerator>

        <!-- 生成MyBatis的Mapper.xml文件，targetPackage指定mapper.xml文件的包名， targetProject指定生成的mapper.xml放在eclipse的哪個工程下面 -->
        <sqlMapGenerator targetPackage="com.abc.springboot.mapper" targetProject="src/main/java">
            <property name="enableSubPackages" value="false" />
        </sqlMapGenerator>

        <!-- 生成MyBatis的Mapper接口類文件,targetPackage指定Mapper接口類的包名， targetProject指定生成的Mapper接口放在eclipse的哪個工程下面 -->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.abc.springboot.mapper" targetProject="src/main/java">
            <property name="enableSubPackages" value="false" />
        </javaClientGenerator>

        <!-- 數據庫表名及對應的Java模型類名 -->
        <table tableName="t_student" domainObjectName="Student"
               enableCountByExample="false"
               enableUpdateByExample="false"
               enableDeleteByExample="false"
               enableSelectByExample="false"
               selectByExampleQueryId="false"/>
    </context>

</generatorConfiguration>

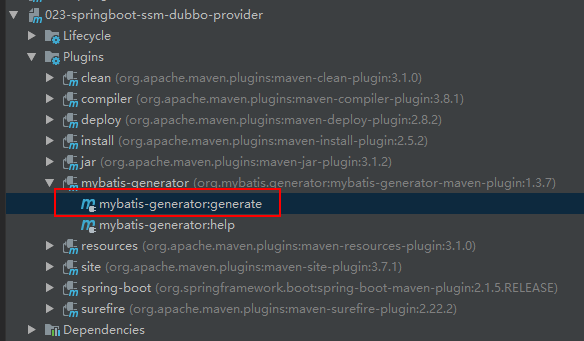

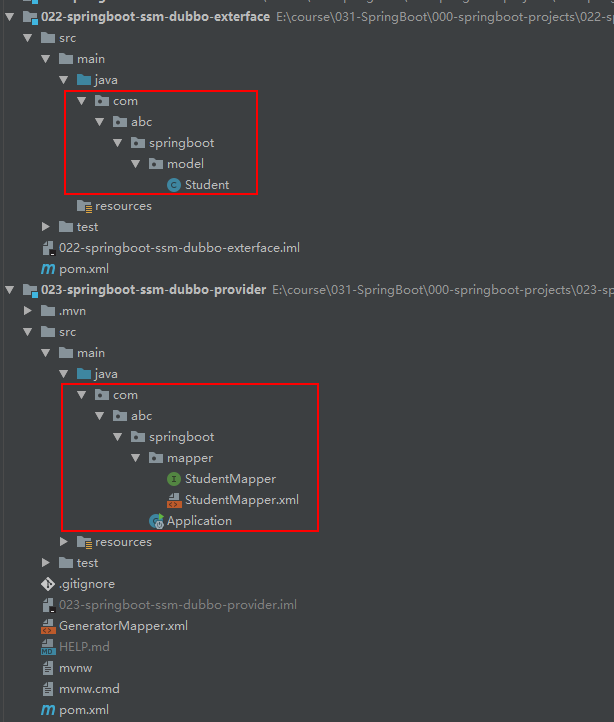

④ 點擊插件生成

⑤ 實體beann必須實現序列化

7.配置023-springboot-ssm-dubbo-provider核心配置文件

application.properties

#配置內嵌Tomcat端口號
server.port=8081


#配置項目上下文根
server.servlet.context-path=023-springboot-ssm-dubbo-provider

#配置連接MySQL數據庫信息
spring.datasource.url=jdbc:mysql://192.168.92.134:3306/springboot?useUnicode=true&characterEncoding=UTF-8&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=UTC
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.username=root
spring.datasource.password=123456

#配置dubbo服務提供者
spring.application.name=023-springboot-ssm-dubbo-provider
#表示是服務提供者
spring.dubbo.server=true
#注冊中心地址
spring.dubbo.registry=zookeeper://192.168.92.134:2181

#配置redis連接信息
spring.redis.host=192.168.92.134
spring.redis.port=6379
spring.redis.password=123456

8.StudentServiceImpl業務接口實現類

package com.abc.springboot.service;

import com.abc.springboot.mapper.StudentMapper;
import com.abc.springboot.model.Student;
import com.alibaba.dubbo.config.annotation.Service;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import org.springframework.stereotype.Component;

import java.util.List;
import java.util.concurrent.TimeUnit;

/**
 * ClassName:StudentServiceImpl
 * Package:com.abc.springboot.service
 * Description:<br/>
 */
@Service(interfaceName = "com.abc.springboot.service.StudentService",version = "1.0.0",timeout = 15000)
@Component
public class StudentServiceImpl implements StudentService {

    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private RedisTemplate<Object,Object> redisTemplate;

    @Override
    public List<Student> queryAllStudent() {
        return studentMapper.selectAllStudent();
    }

    @Override
    public Long queryAllStudentCount() {
        //設置redisTemplate的key序列化方式
        redisTemplate.setKeySerializer(new StringRedisSerializer());

        //從redis中獲取學生總?cè)藬?shù)
        Long allStudentCount = (Long) redisTemplate.opsForValue().get("allStudentCount");

        //判斷是否有值
        if (null == allStudentCount) {

            //去數據庫查詢
            allStudentCount = studentMapper.selectAllStudentCount();

            //將學生總?cè)藬?shù)存放到redis緩存中
            redisTemplate.opsForValue().set("allStudentCount",allStudentCount,15, TimeUnit.MINUTES);
        }

        return allStudentCount;
    }
}


9.配置023-springboot-ssm-dubbo-provider啟動類

@SpringBootApplication
@EnableDubboConfiguration   //開啟dubbo支持配置
@MapperScan(basePackages = "com.abc.springboot.mapper") //掃描數據持久層映射文件
public class Application {

    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

10.創建Dubbo服務消費者

項目名稱：024-springboot-ssm-dubbo-consumer

11.給Dubbo服務消費者添加依賴

<!--SpringBoot集成Dubbo起步依賴-->
<dependency>
    <groupId>com.alibaba.spring.boot</groupId>
    <artifactId>dubbo-spring-boot-starter</artifactId>
    <version>2.0.0</version>
</dependency>

<!--zookeeper注冊中心-->
<dependency>
    <groupId>com.101tec</groupId>
    <artifactId>zkclient</artifactId>
    <version>0.10</version>
</dependency>


<!--MyBatis集成SpringBoot框架起步依賴-->
<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>2.0.0</version>
</dependency>

<!--連接MySQL數據庫驅動-->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
</dependency>

<!--SpringBoot集成Redis起步依賴-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>

<!--dubbo接口工程-->
<dependency>
    <groupId>com.abc.springboot</groupId>
    <artifactId>022-springboot-ssm-dubbo-exterface</artifactId>
    <version>1.0.0</version>
</dependency>

12.配置024-springboot-ssm-dubbo-consumer核心配置文件

配置內嵌Tomcat端口號
server.port=8080

#配置項目上下文根
server.servlet.context-path=024-springboot-ssm-dubbo-consumer

#配置zookeeper注冊中心
spring.application.name=024-springboot-ssm-dubbo-consumer
spring.dubbo.registry=zookeeper://192.168.92.134:2181

#配置SpringMVC的視圖解析器
spring.mvc.view.prefix=/
spring.mvc.view.suffix=.jsp

13.StudentController控制層

package com.abc.springboot.web;

import com.abc.springboot.model.Student;
import com.abc.springboot.service.StudentService;
import com.alibaba.dubbo.config.annotation.Reference;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

/**
 * ClassName:StudentController
 * Package:com.abc.springboot.web
 * Description:<br/>
 */
@RestController
public class StudentController {



    @Reference(interfaceName = "com.abc.springboot.service.StudentService",version = "1.0.0",check = false)
    private StudentService studentService;

    @RequestMapping(value = "/springBoot/students")
    public Object students() {

        List<Student> studentList = studentService.queryAllStudent();

        return studentList;
    }

    @RequestMapping(value = "/springBoot/student/count")
    public Object studentCount() {

        Long allStudentCount = studentService.queryAllStudentCount();

        return "學生總?cè)藬?shù)為：" + allStudentCount;
    }
}

14.配置024-springboot-ssm-dubbo-consumer啟動類

@SpringBootApplication
@EnableDubboConfiguration   //開啟dubbo支持配置
public class Application {

    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

15.啟動023-springboot-ssm-dubbo-provider

16.啟動024-springboot-ssm-dubbo-consumer

17.啟動瀏覽器進行測試

SpringBoot項目日志中警告信息的處理

在啟動項目的時候，控制臺出現如下警告信息

主要是因?yàn)閆ookeeper包中，slf4j-log4j12和log4j沖突了，需要處理一下；

在服務提供者和消費中的pom.xml文件的ZooKeeper依賴中添加如下內容。

<!--zookeeper注冊中心-->
<dependency>
    <groupId>com.101tec</groupId>
    <artifactId>zkclient</artifactId>
    <version>0.10</version>
    <exclusions>
        <exclusion>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
        </exclusion>
        <exclusion>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
        </exclusion>
    </exclusions>
</dependency>

替換后，重啟服務進行測試。
